STOP PAYING THE LOGO TAX

Market Retail Value: $849.00
Your Direct Price: $499.00
You Save: $350 (Direct-to-Consumer Advantage)

Compare the Rocket 520 to the leading 29er MTBs from Brand T or Brand S. While they charge for the name, we invest every dollar into your Shimano drivetrain and hydraulic braking power. Pure performance, no markups.

Why Rocket 520 is a Game-Changer:

Hydroformed X6 Aerospace Alloy: Featuring a Smooth-Weld finish and Internal Cable Routing. High-pressure liquid shaping ensures a frame that is vertically compliant yet laterally rigid, giving you carbon-fiber aesthetics with the legendary durability of X6 aluminum.
Full Shimano Altus 27-Speed Drivetrain: Massive gear range with the Shimano FC-MT210-3 2-Piece Integrated Alloy Crank—technology typically reserved for bikes twice this price.
Precision Hydraulic Stopping Power: Trust your safety to CSTAR Hydraulic Disc Brakes for one-finger modulation and consistent performance in mud, rain, or dust.
The 29-Inch Advantage: Alloy double-wall rims and 14G Stainless Steel spokes roll over obstacles that stop smaller wheels in their tracks.
Available Colors: Choose between a stealthy Matt Black or a premium Shiny Grey finish.

Full Factory Specifications

Category	Rocket 520 Detailed Specs
Frame	XDS X6 Alloy MTB Hardtail Frame (Aerospace Grade)
Fork	XDS Front Suspension Fork, 100mm Travel
Crankset	Shimano FC-MT210-3 22/30/40x170 Alloy Crank
Bottom Bracket	Sealed Cartridge Type
Derailleurs	Shimano FD-M2000 Altus (Front) / RD-M2000 Altus (Rear) 27-Speed
Shift Levers	Shimano ST-M2010 Rapid-Fire Plus 27-Speed
Freewheels	Shimano CS-M3009 11-36T 9-Speed
Brakes	CSTAR Hydraulic Disc Brake
Handlebar	XDS Alloy 680mm Wide
Stem	XDS Alloy (Diameter 28.6mm, Extension 90mm, Height 30mm)
Seat Post	Alloy 31.6mm x 400mm
Seat Clamp	Alloy, Quick-Release (QR) Type
Wheelset	29-Inch Alloy Double Wall Rim (32H) w/ Alloy QR Hubs
Tires	29 x 2.0 Black All-Terrain Tires
Spokes	14G Stainless Steel (Rust-Proof)
Chain	KMC Z9 114L
Pedals / Grips	Resin Body Pedals / Rubber Grips
Weight	Approx. 36 lbs

Find Your Perfect Fit (29er Geometry)

Frame Size	Rider Height Range
15.5-Inch (S)	5ft 2in – 5ft 6in
17.5-Inch (M)	5ft 6in – 5ft 10in
19.5-Inch (L)	5ft 10in – 6ft 2in

🎁 Official Corporate Bonus: The Rider's Starter Pack

Every Rocket 520 ordered directly from our South El Monte, CA headquarters includes:

Digital Body Scale: Track your fitness progress as you conquer new trails.
Pro-Assembly Tool Kit: Allen Key & Pedal Wrench included for factory-spec setup.

XDSBikeco: Part of a Southern California cycling heritage since 2002.

Operating from our South El Monte headquarters since 2008.
Direct-to-Consumer pricing with two decades of professional engineering standing behind every ride.

All Terrain

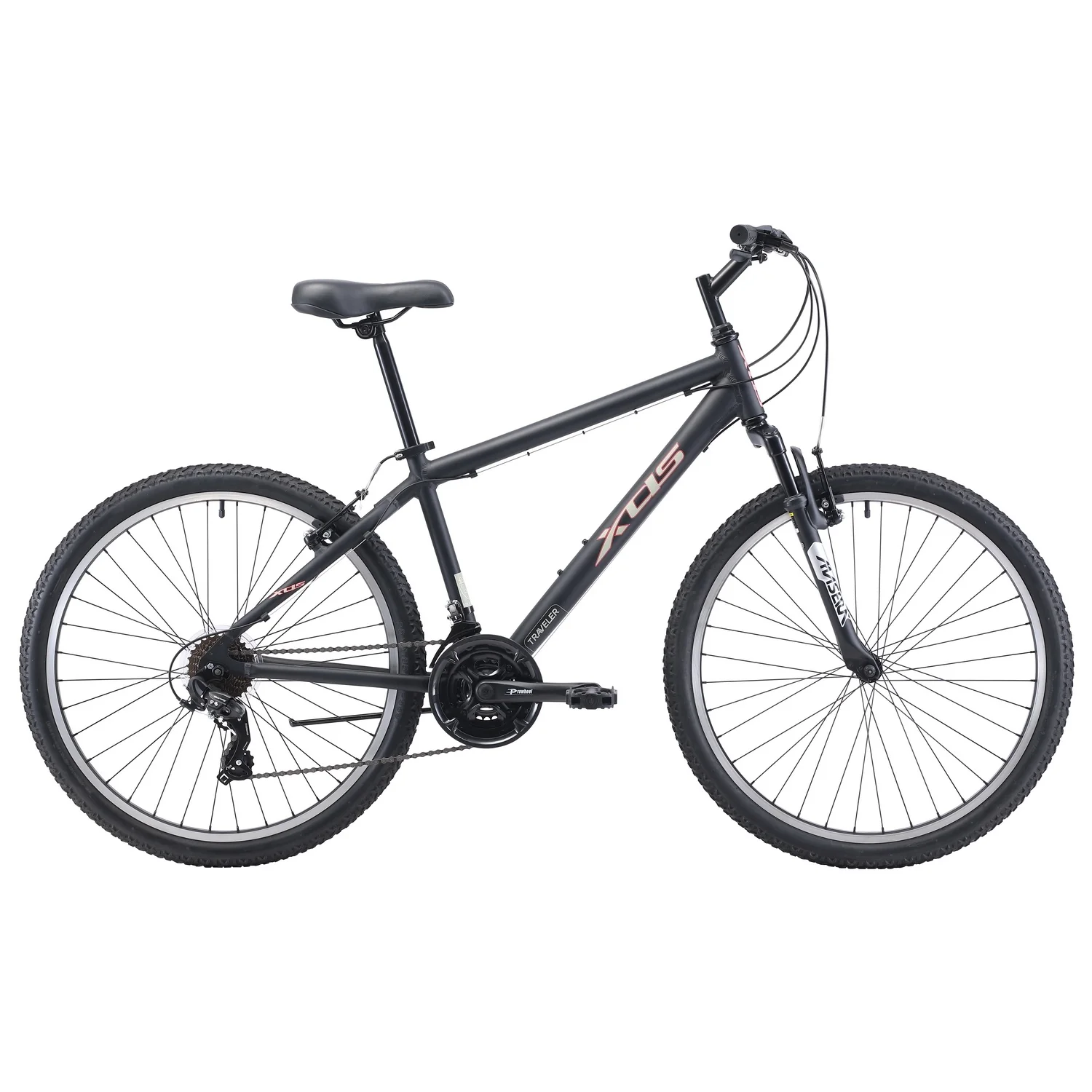

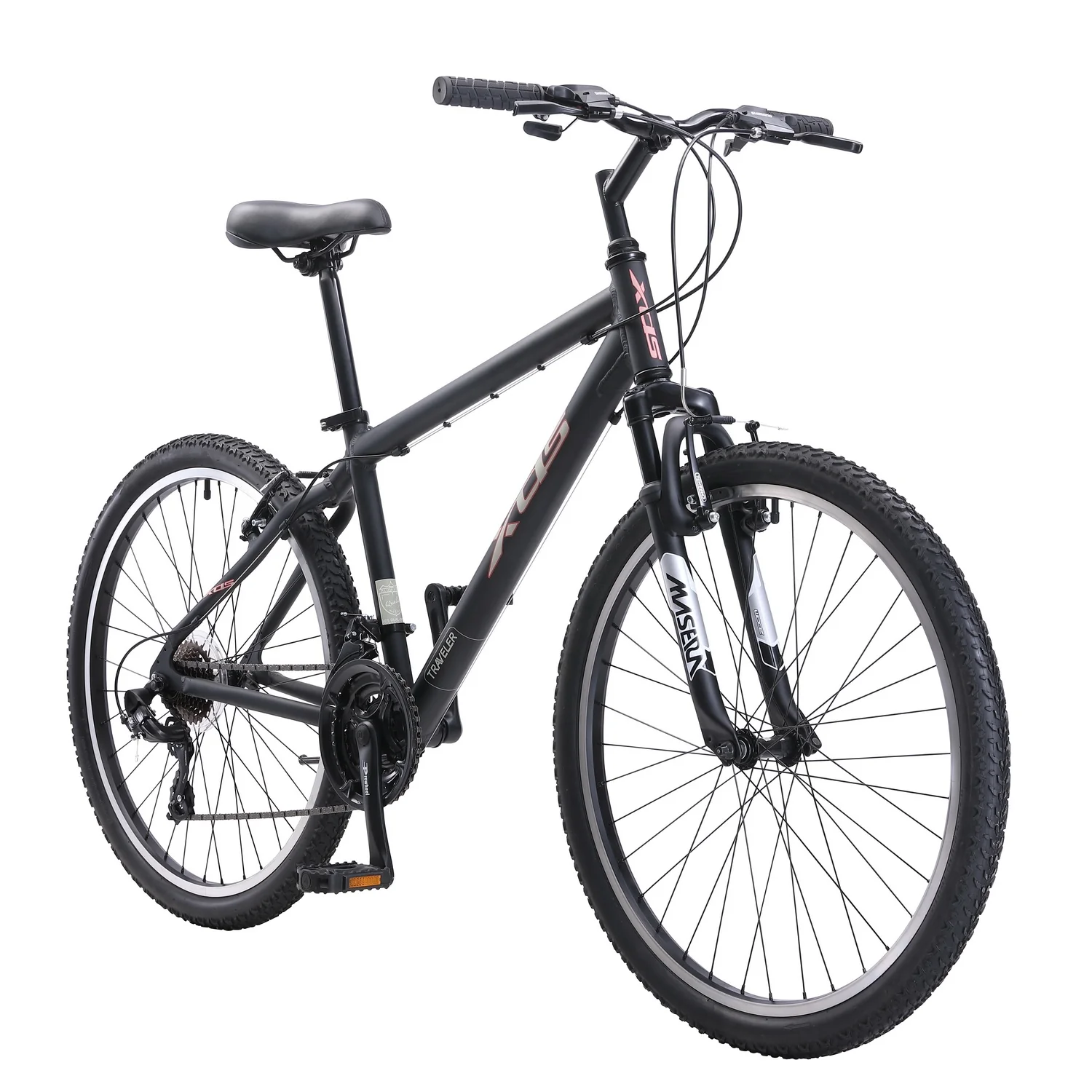

XDSBIKE Traveler 21-Speed Men's 26-Inch Mountain Bike // Matte Black

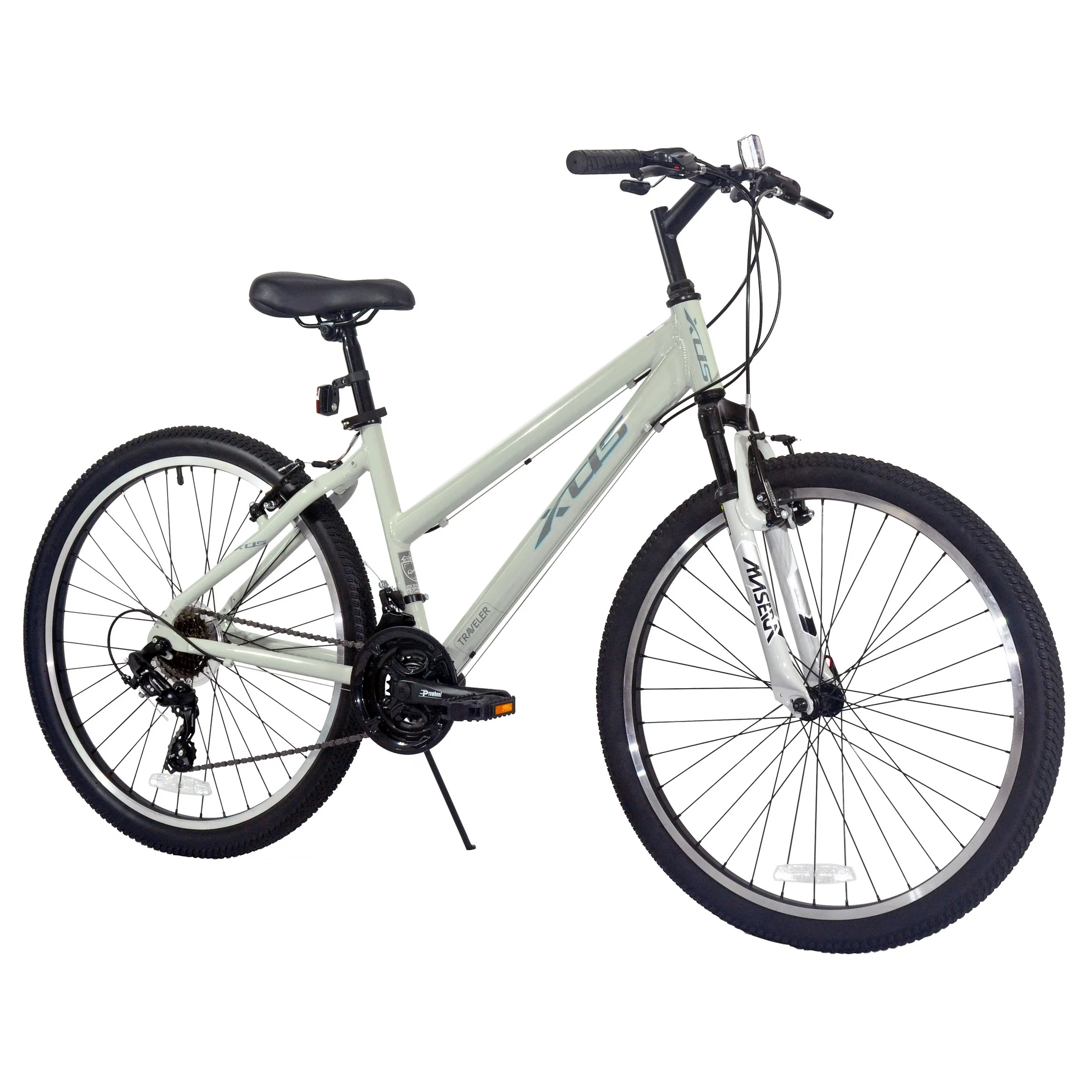

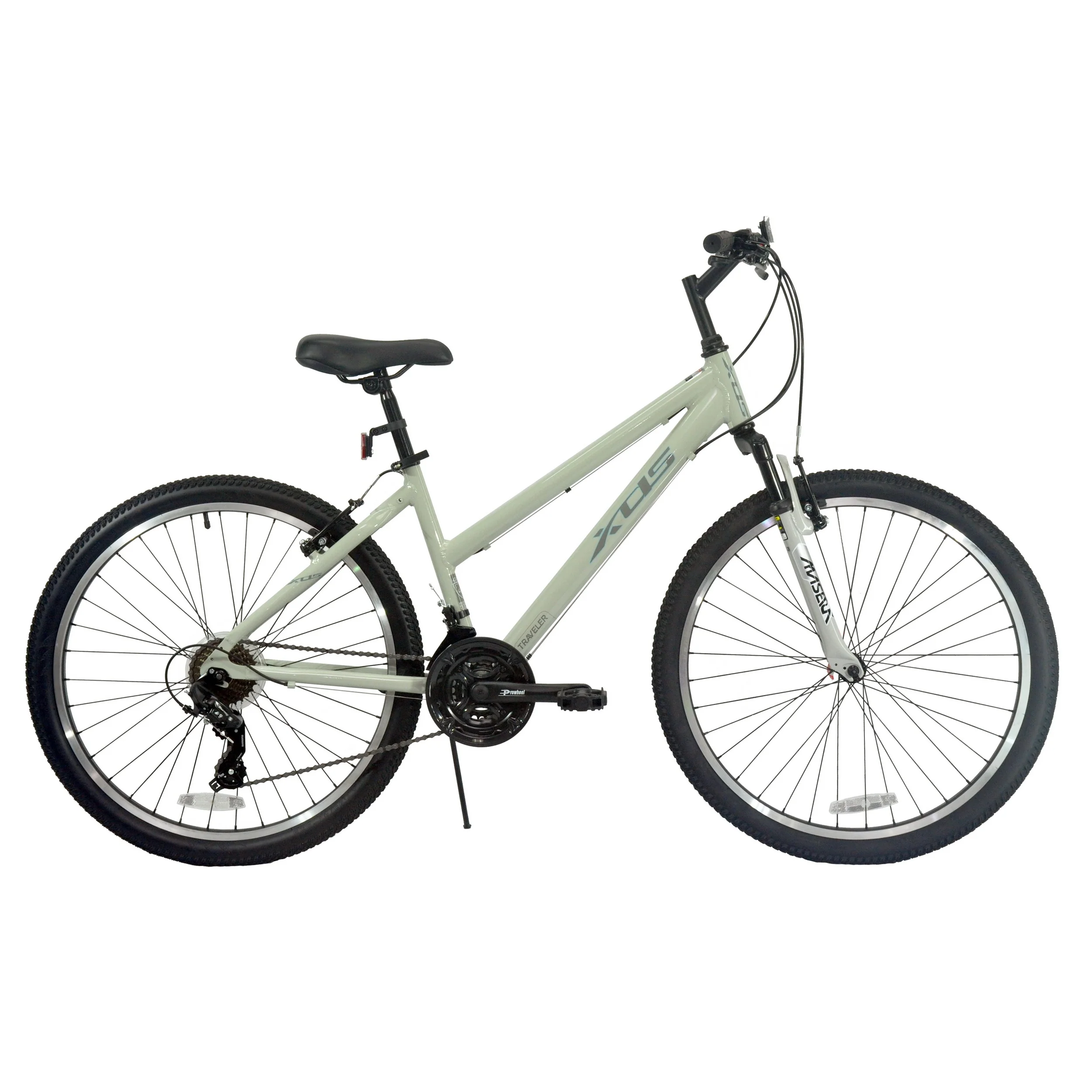

XDSBIKE Traveler 21sp Step-Through 26-Inch Mountain Bike // Grey

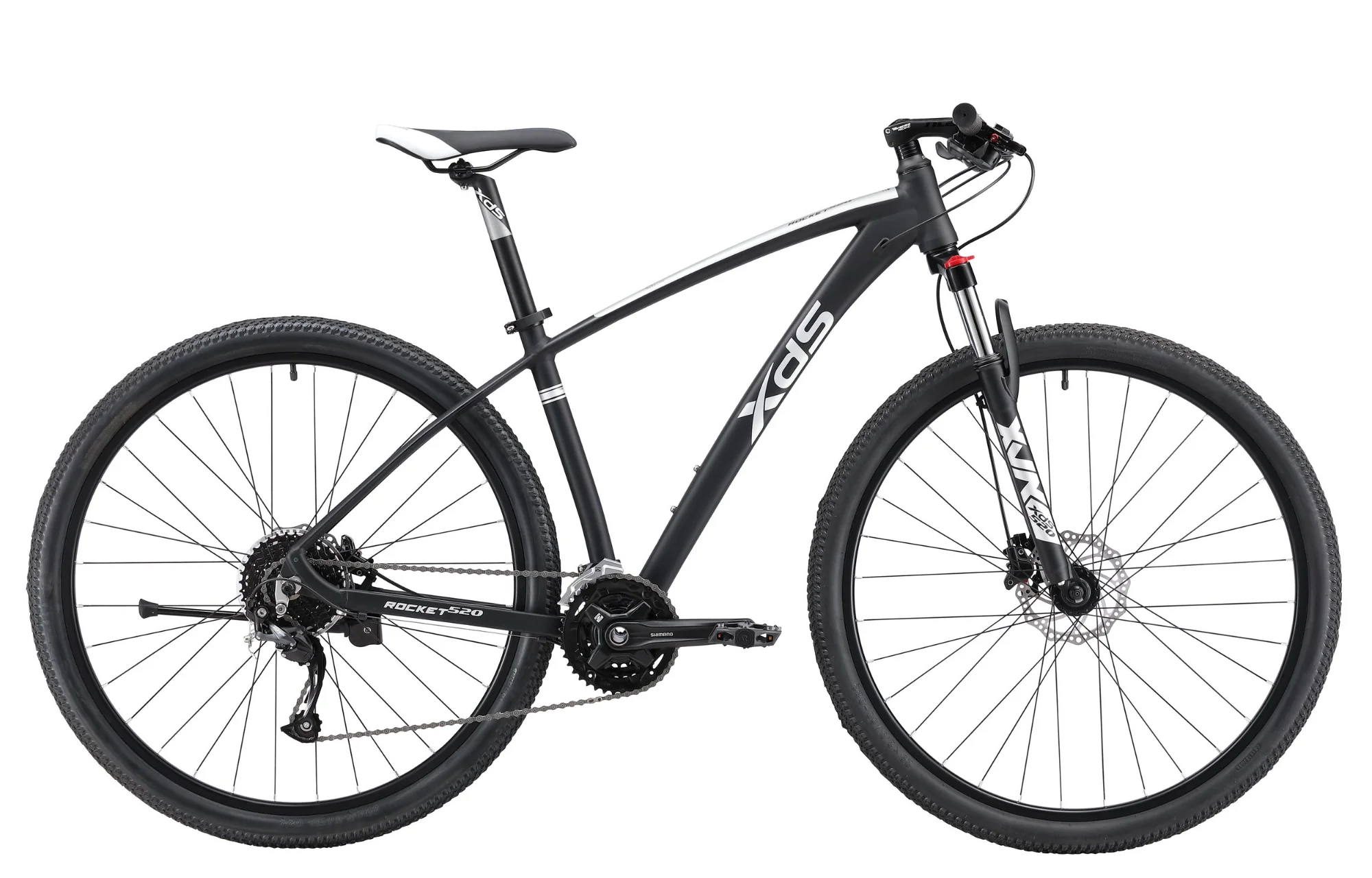

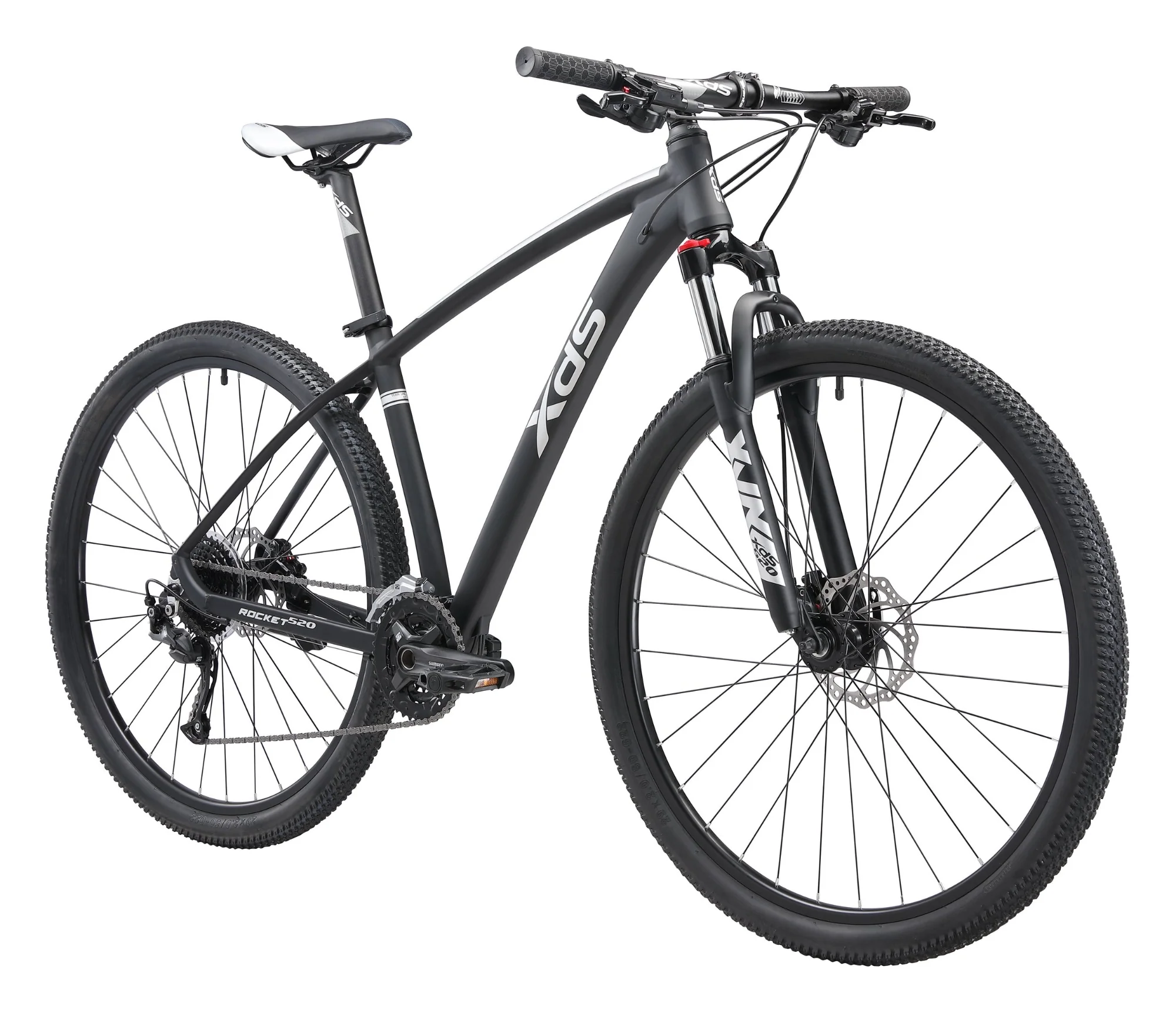

XDSBIKE Rocket 520 | Pro-Spec 29er Trail MTB with Hydraulic Braking & Shimano 27-Speed

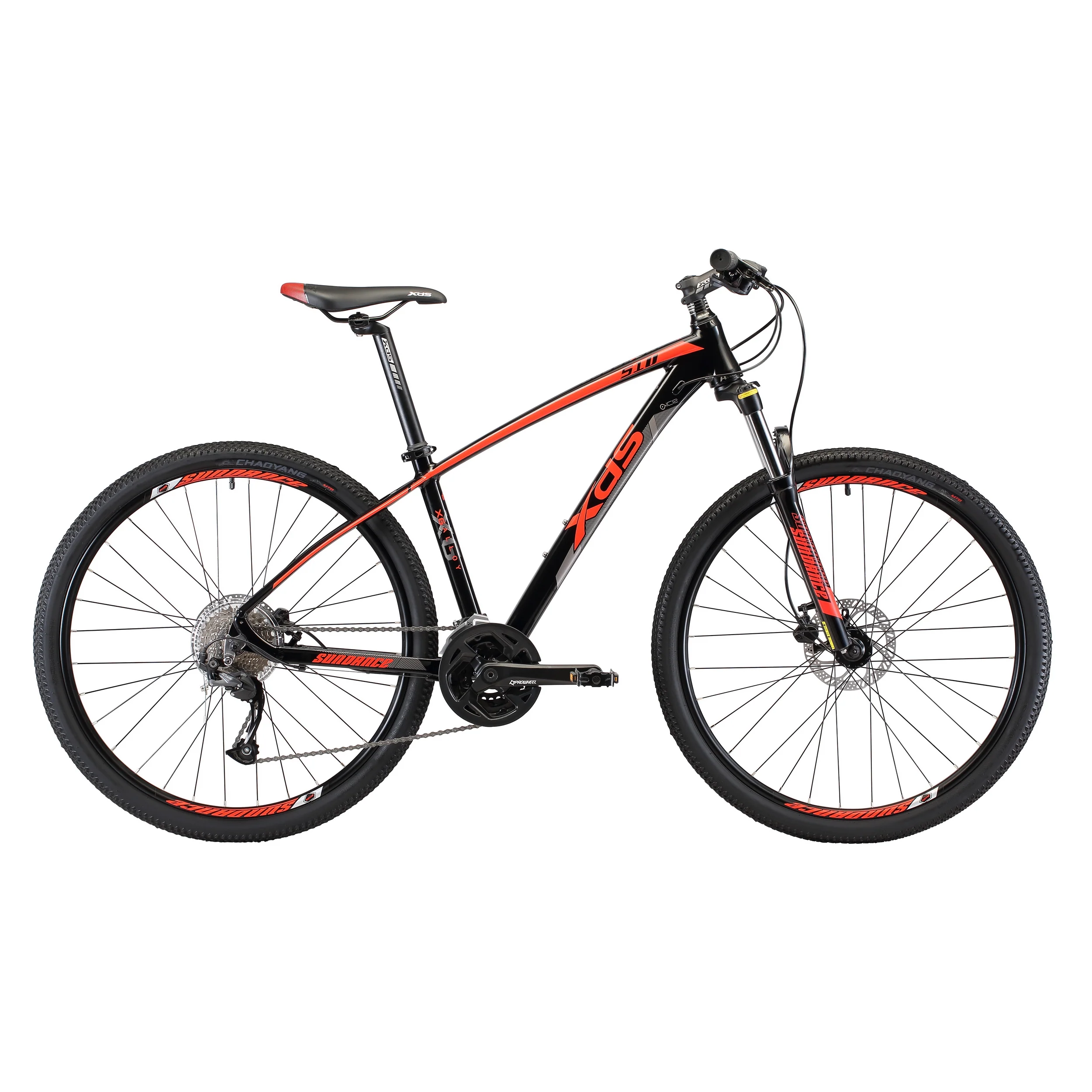

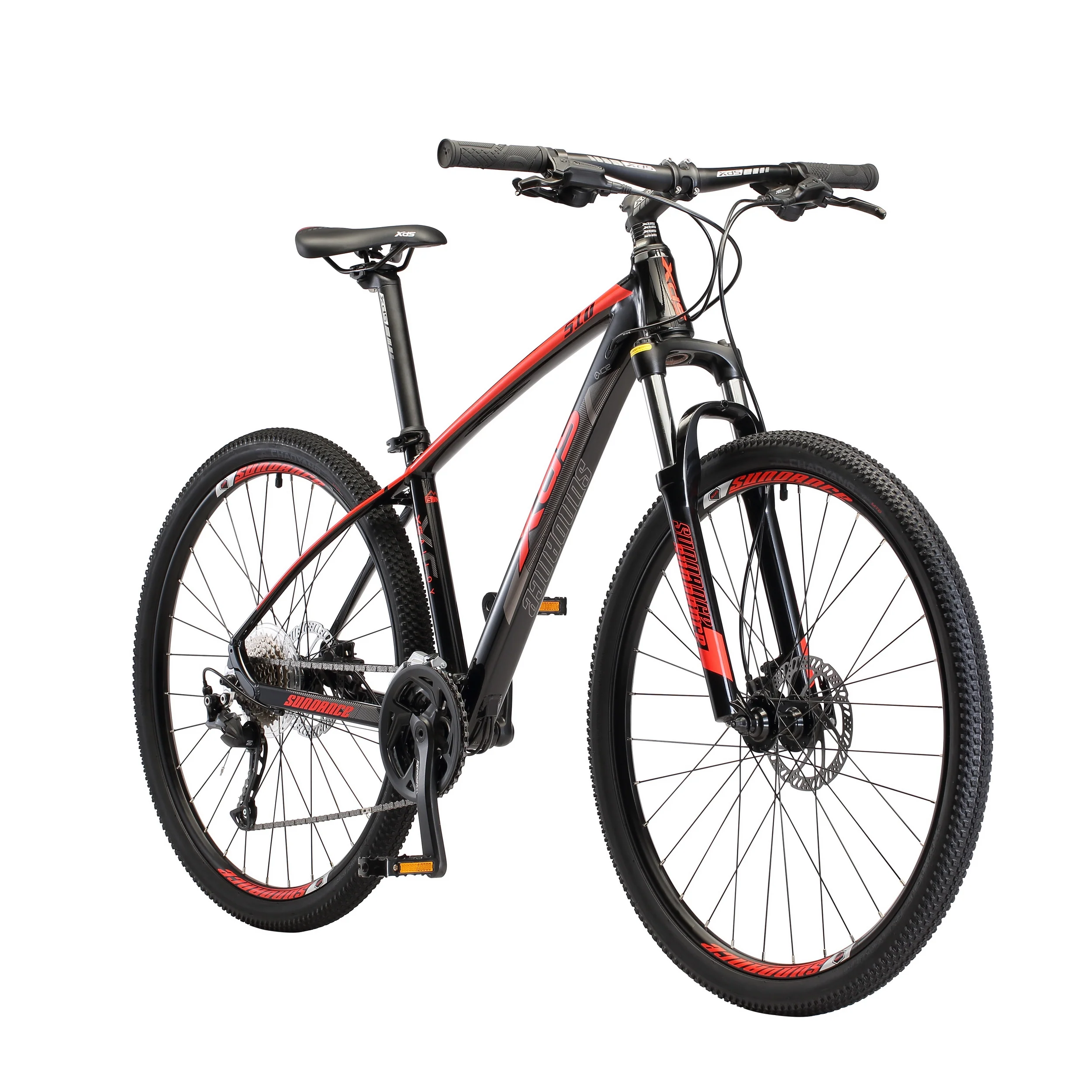

XDSBIKE Sundance 510 27-Speed 27.5" Mountain Bike
