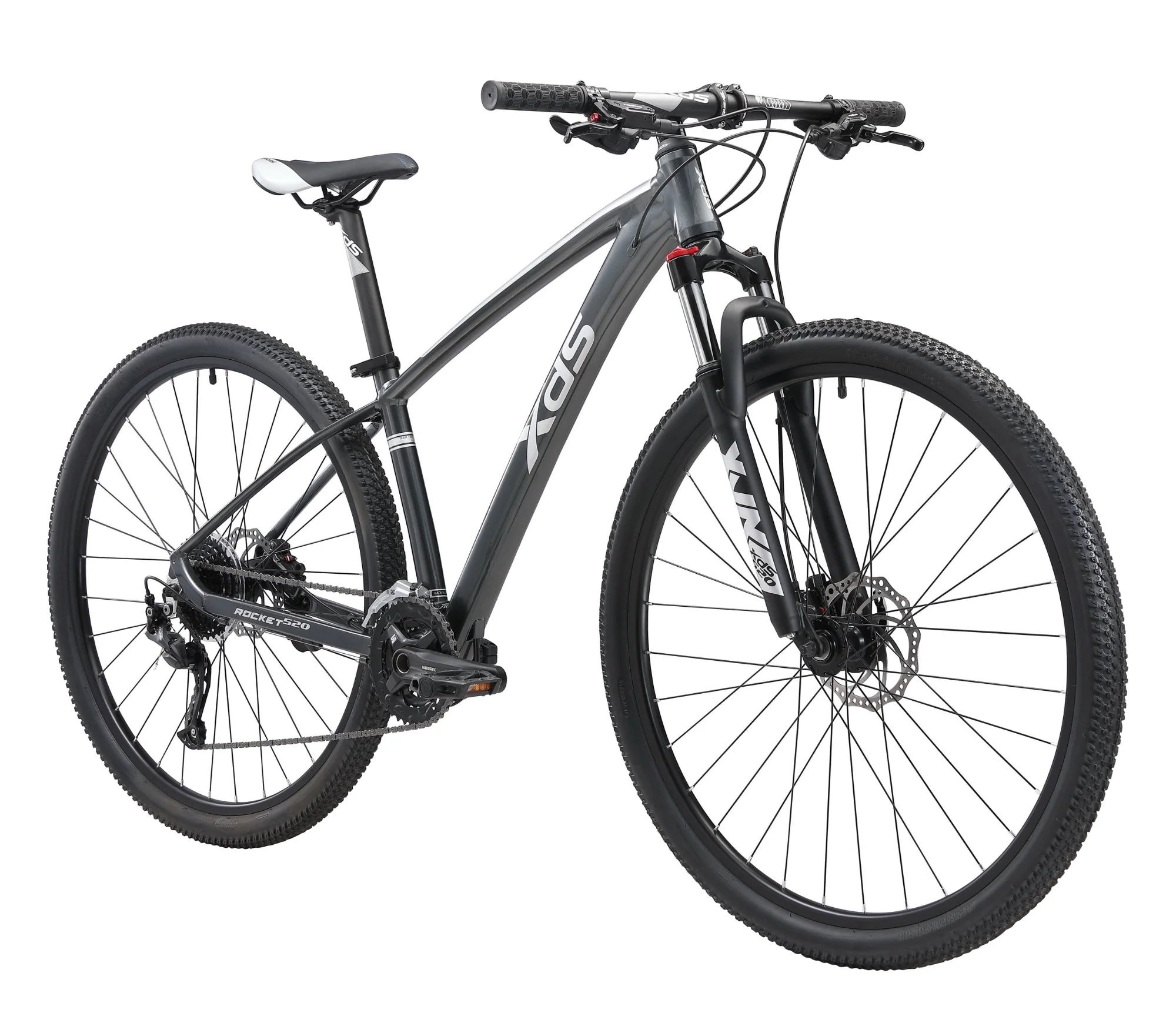

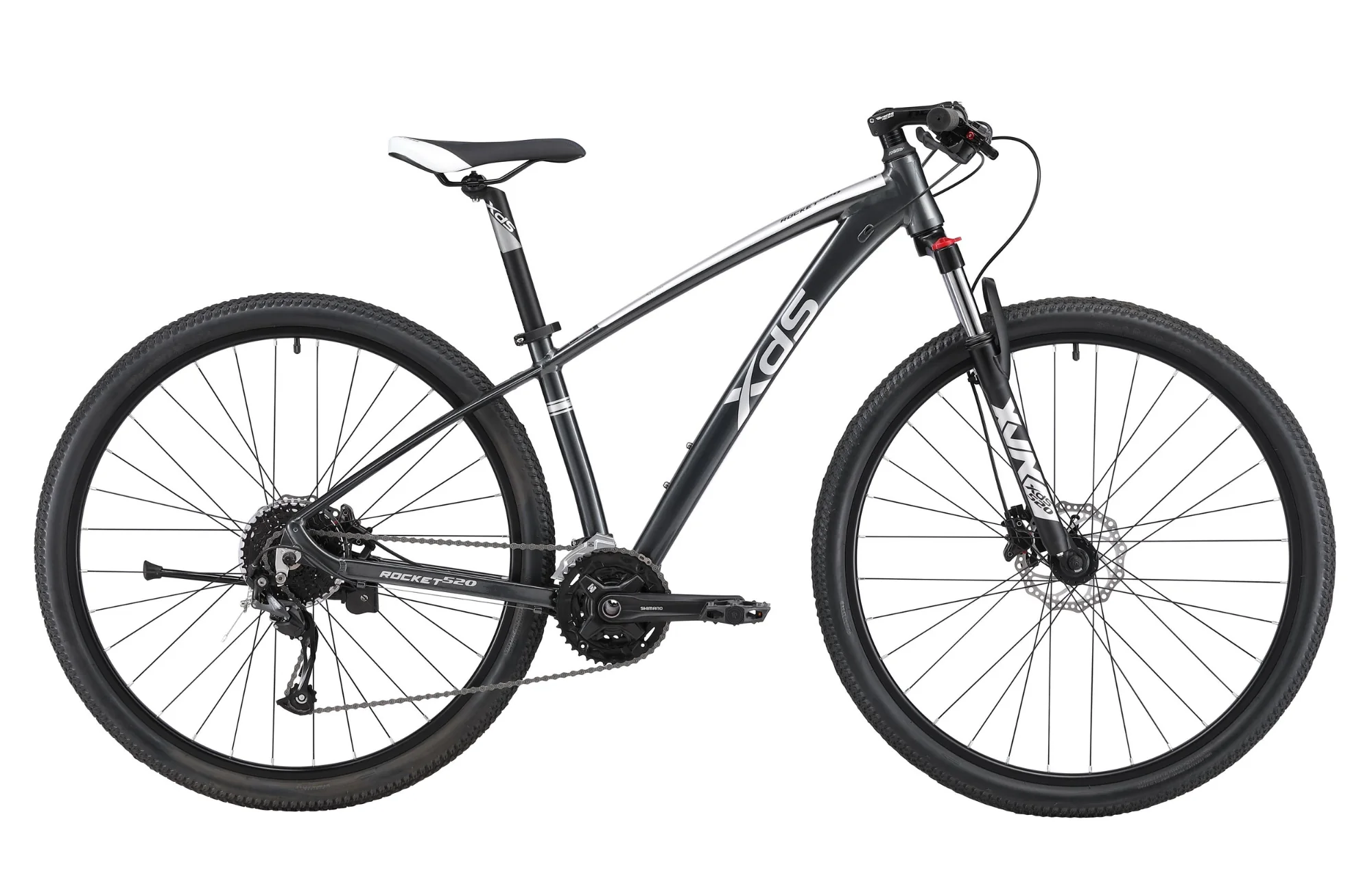

XDSBIKE Rocket 520 | Pro-Spec 29er Trail MTB with Hydraulic Braking & Shimano 27-Speed
STOP PAYING THE LOGO TAX
Market Retail Value: $849.00
Your Direct Price: $499.00
You Save: $350 (Direct-to-Consumer Advantage)
Compare the Rocket 520 to the leading 29er MTBs from Brand T or Brand S. While they charge for the name, we invest every dollar into your Shimano drivetrain and hydraulic braking power. Pure performance, no markups.
Why Rocket 520 is a Game-Changer:
- Hydroformed X6 Aerospace Alloy: Featuring a Smooth-Weld finish and Internal Cable Routing. High-pressure liquid shaping ensures a frame that is vertically compliant yet laterally rigid, giving you carbon-fiber aesthetics with the legendary durability of X6 aluminum.
- Full Shimano Altus 27-Speed Drivetrain: Massive gear range with the Shimano FC-MT210-3 2-Piece Integrated Alloy Crank—technology typically reserved for bikes twice this price.
- Precision Hydraulic Stopping Power: Trust your safety to CSTAR Hydraulic Disc Brakes for one-finger modulation and consistent performance in mud, rain, or dust.
- The 29-Inch Advantage: Alloy double-wall rims and 14G Stainless Steel spokes roll over obstacles that stop smaller wheels in their tracks.
- Available Colors: Choose between a stealthy Matt Black or a premium Shiny Grey finish.
Full Factory Specifications
| Category | Rocket 520 Detailed Specs |
|---|---|
| Frame | XDS X6 Alloy MTB Hardtail Frame (Aerospace Grade) |

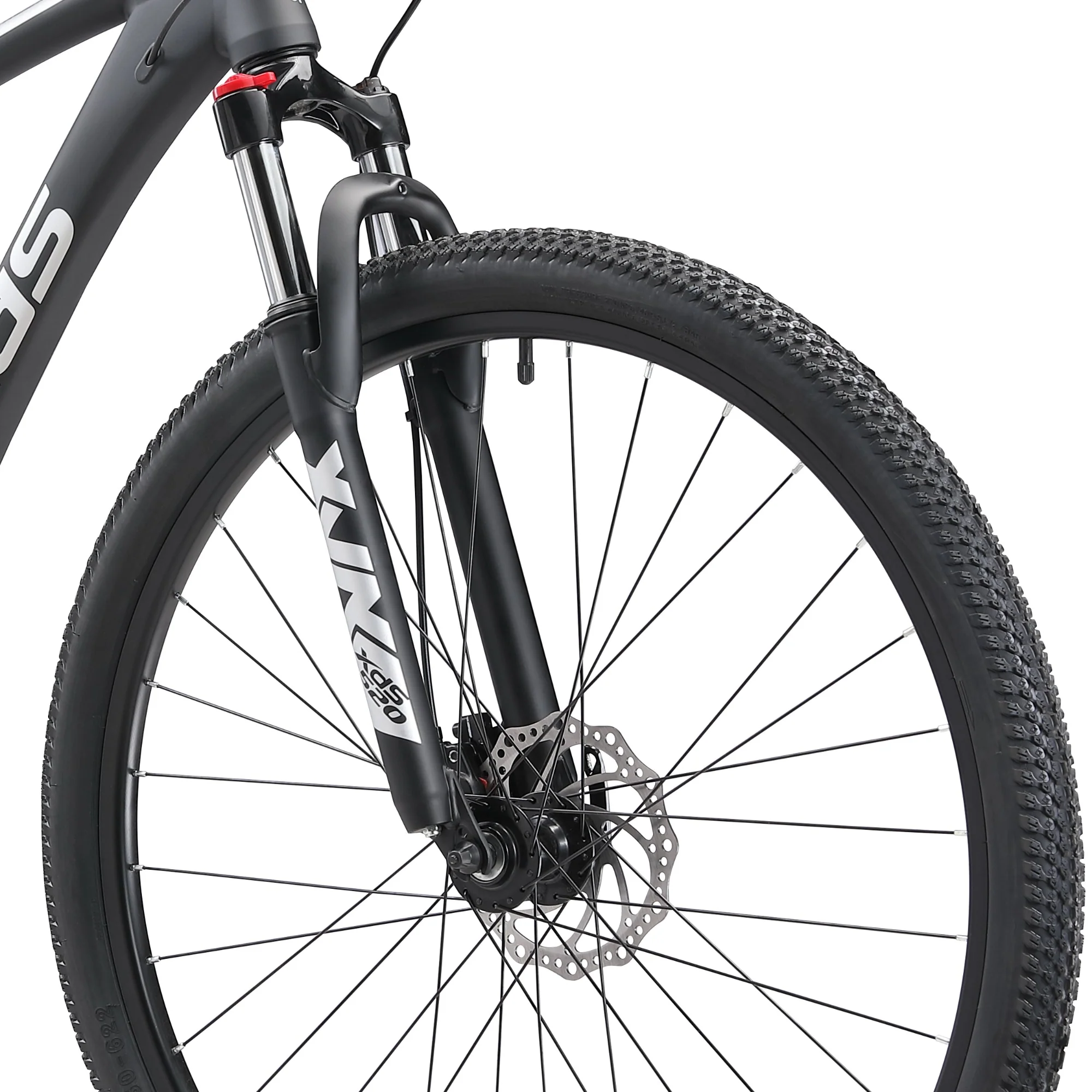

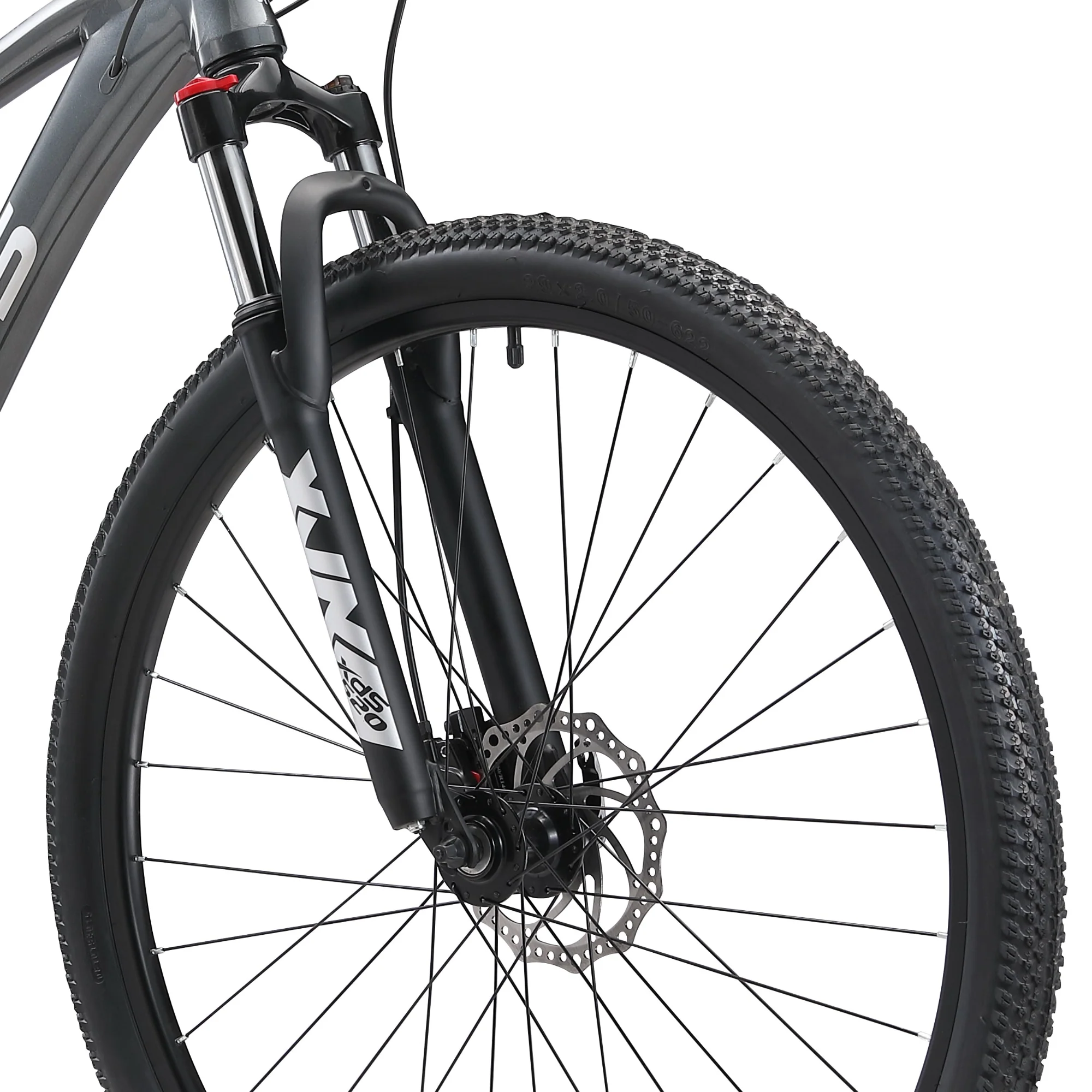

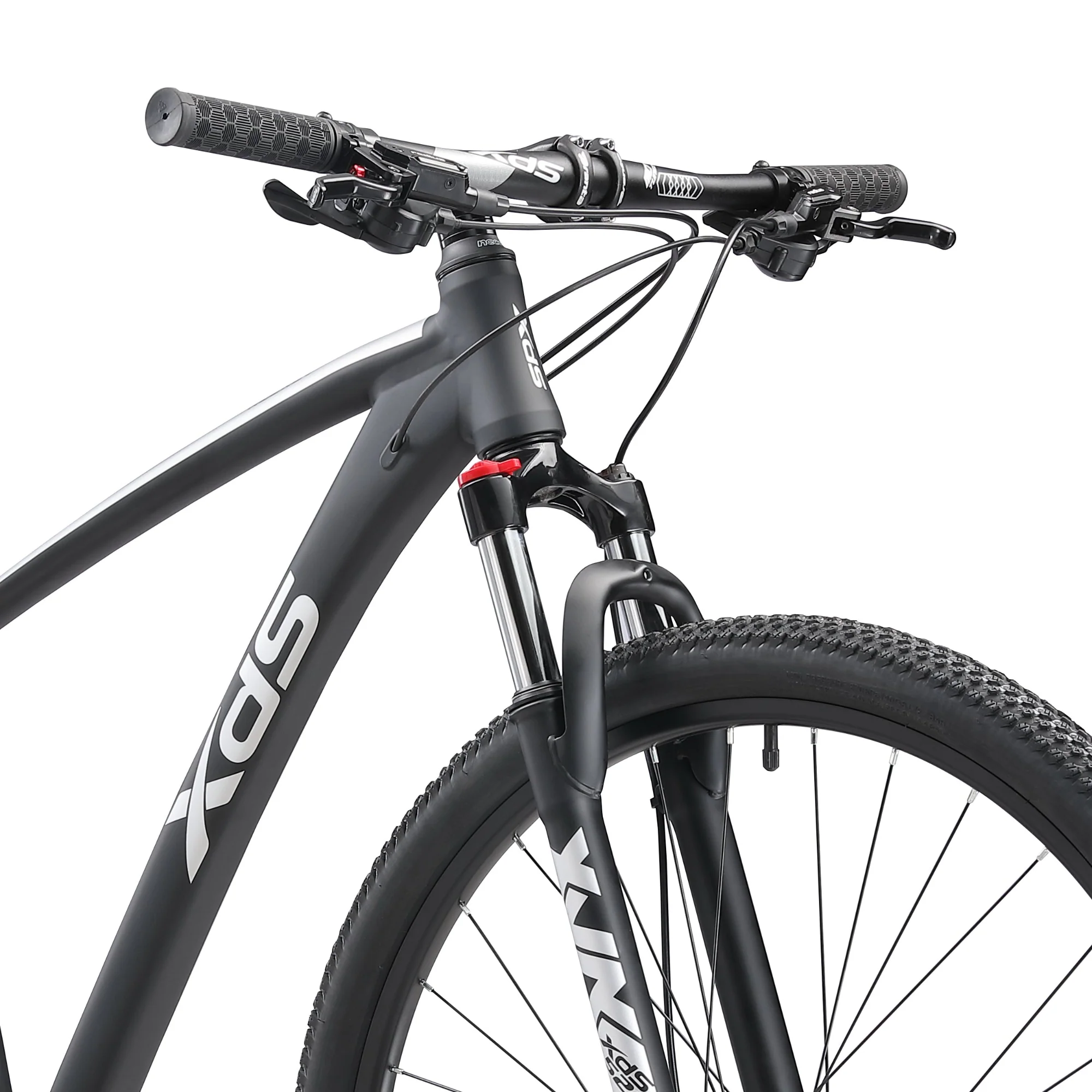

| Fork | XDS Front Suspension Fork, 100mm Travel |

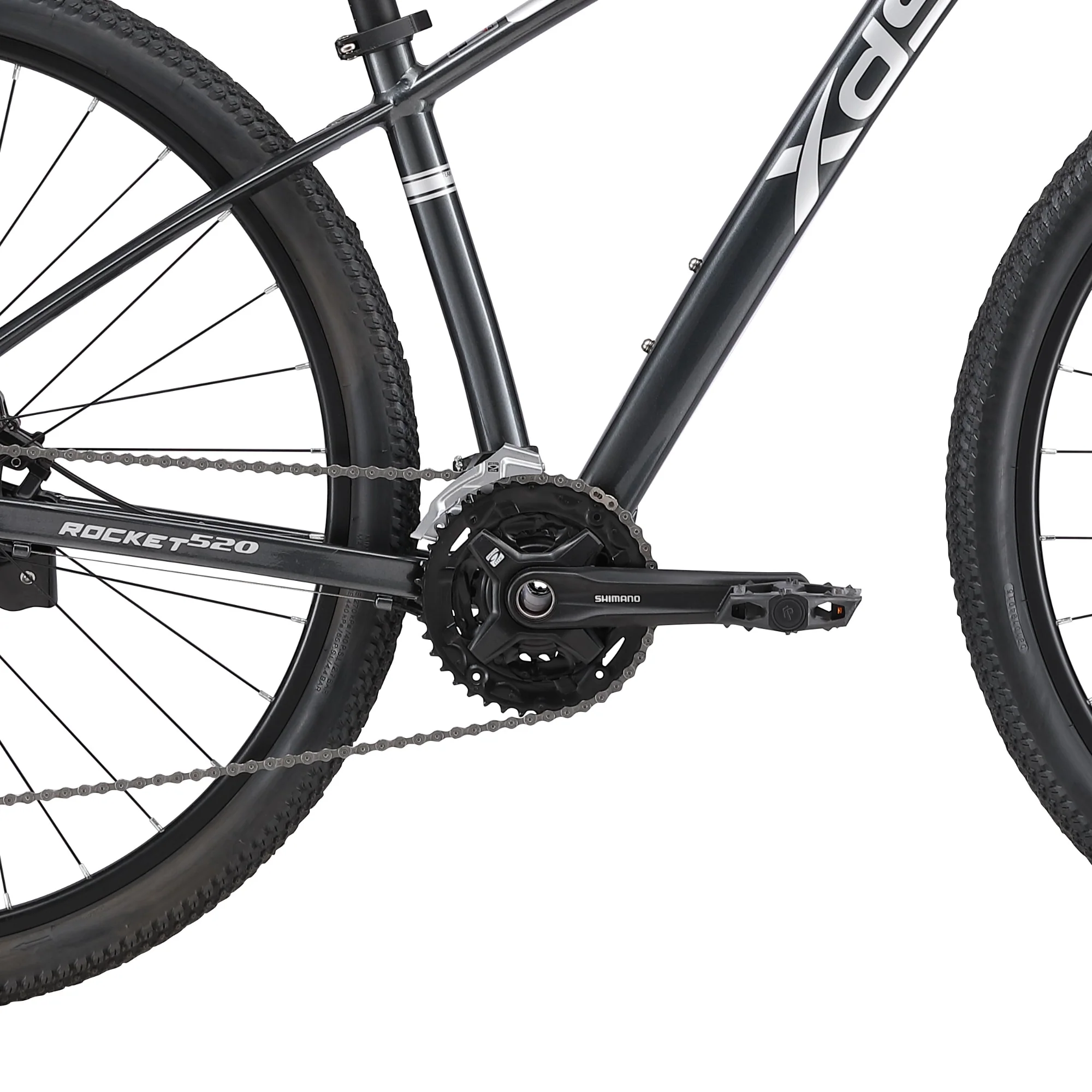

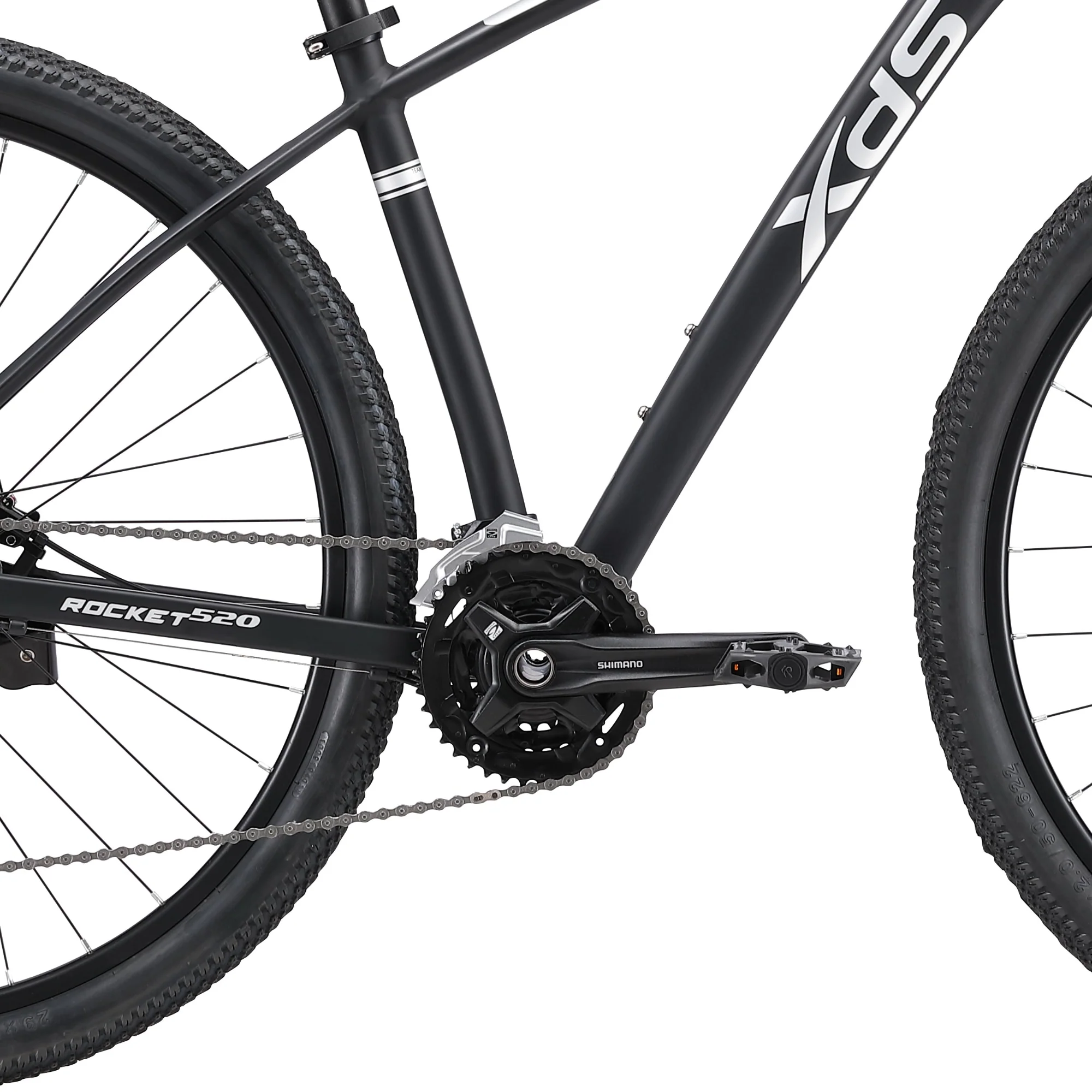

| Crankset | Shimano FC-MT210-3 22/30/40x170 Alloy Crank |
| Bottom Bracket | Sealed Cartridge Type |

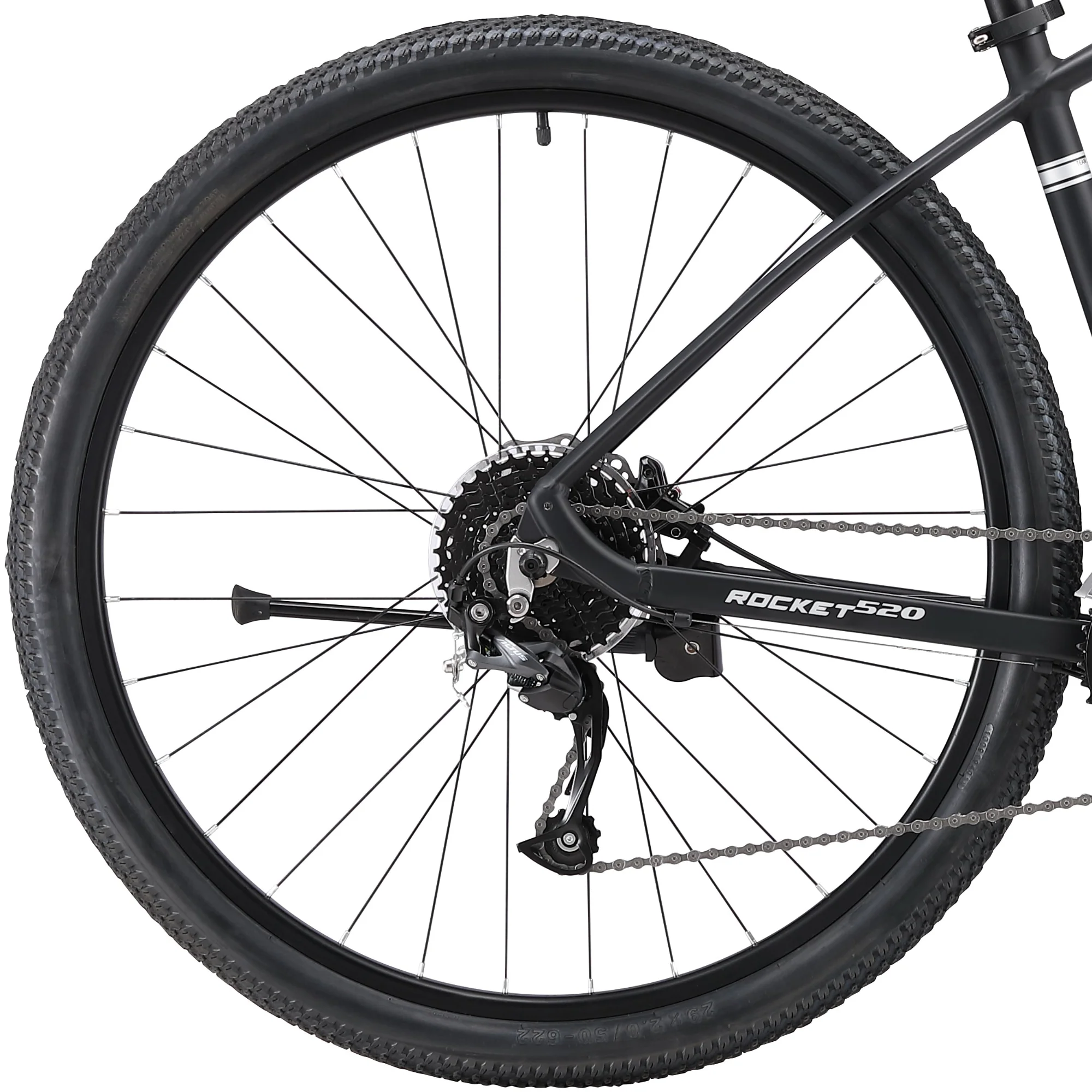

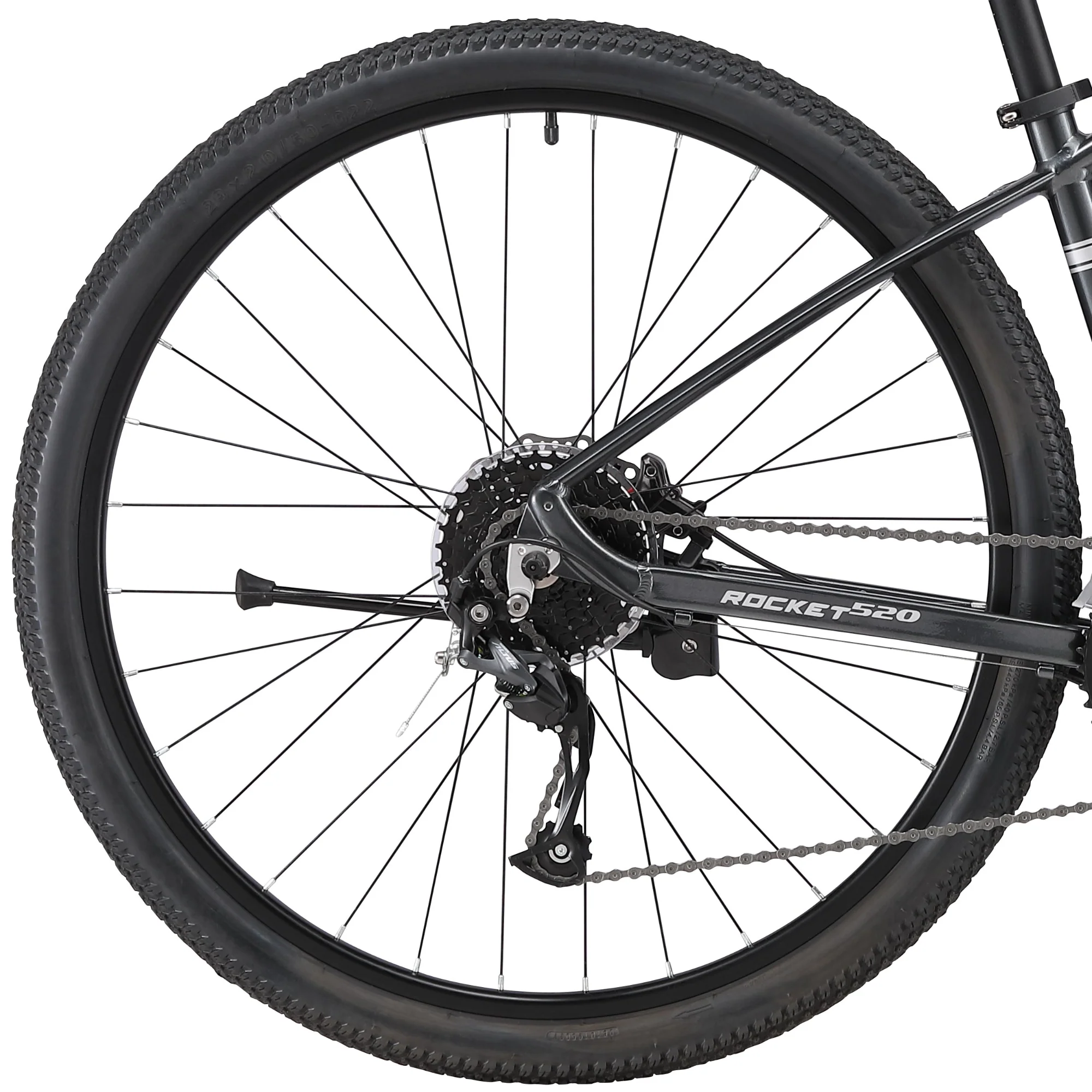

| Derailleurs | Shimano FD-M2000 Altus (Front) / RD-M2000 Altus (Rear) 27-Speed |
| Shift Levers | Shimano ST-M2010 Rapid-Fire Plus 27-Speed |
| Freewheels | Shimano CS-M3009 11-36T 9-Speed |
| Brakes | CSTAR Hydraulic Disc Brake |

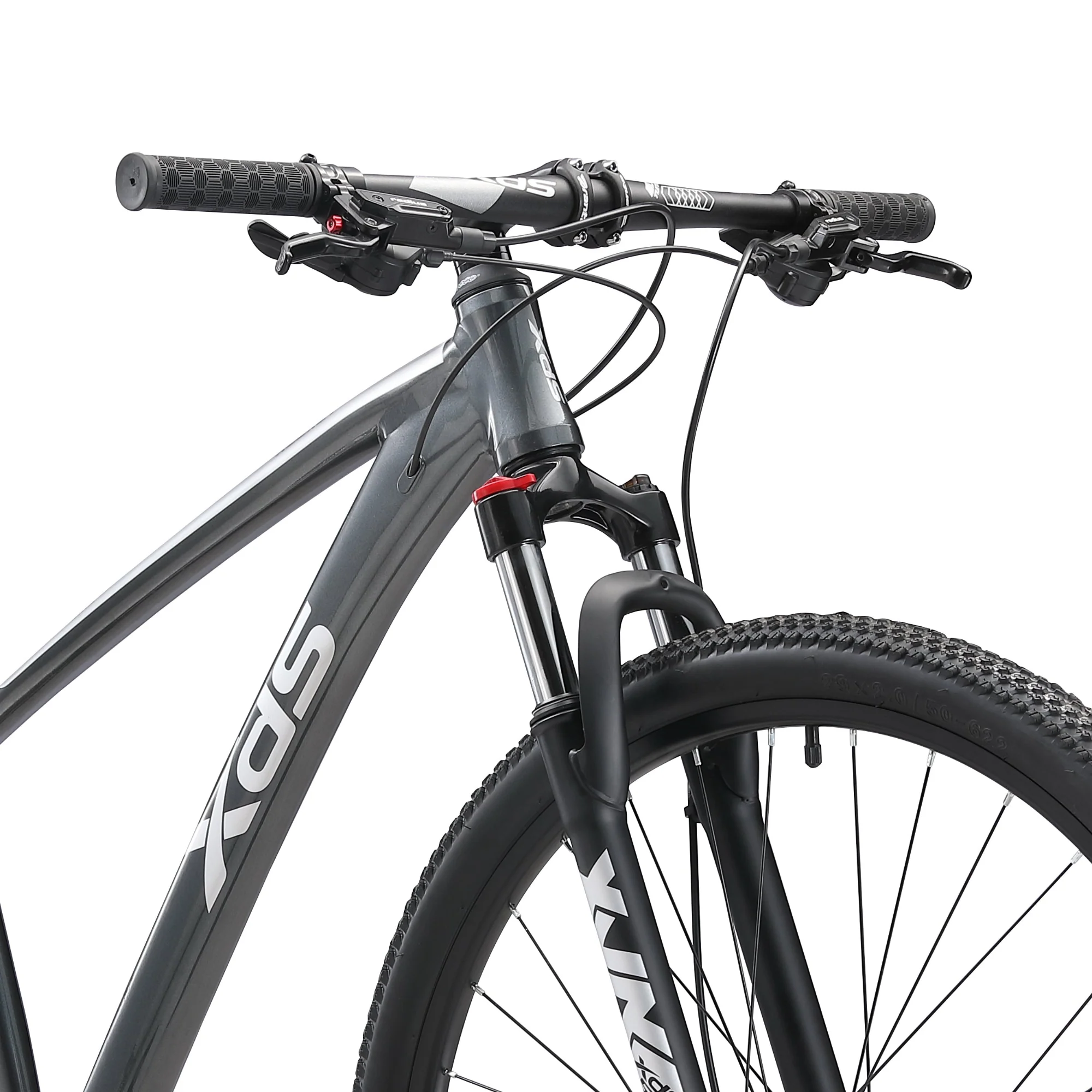

| Handlebar | XDS Alloy 680mm Wide |
| Stem | XDS Alloy (Diameter 28.6mm, Extension 90mm, Height 30mm) |
| Seat Post | Alloy 31.6mm x 400mm |
| Seat Clamp | Alloy, Quick-Release (QR) Type |
| Wheelset | 29-Inch Alloy Double Wall Rim (32H) w/ Alloy QR Hubs |
| Tires | 29 x 2.0 Black All-Terrain Tires |
| Spokes | 14G Stainless Steel (Rust-Proof) |
| Chain | KMC Z9 114L |
| Pedals / Grips | Resin Body Pedals / Rubber Grips |
| Weight | Approx. 36 lbs |
Find Your Perfect Fit (29er Geometry)
| Frame Size | Rider Height Range |
|---|---|
| 15.5-Inch (S) | 5ft 2in – 5ft 6in |
| 17.5-Inch (M) | 5ft 6in – 5ft 10in |
| 19.5-Inch (L) | 5ft 10in – 6ft 2in |
🎁 Official Corporate Bonus: The Rider's Starter Pack
Every Rocket 520 ordered directly from our South El Monte, CA headquarters includes:
- Digital Body Scale: Track your fitness progress as you conquer new trails.
- Pro-Assembly Tool Kit: Allen Key & Pedal Wrench included for factory-spec setup.
XDSBikeco: Part of a Southern California cycling heritage since 2002.
Operating from our South El Monte headquarters since 2008.
Direct-to-Consumer pricing with two decades of professional engineering standing behind every ride.
Original: $499.00
-70%$499.00
$149.70More Images
